- Ürün Kodu : IR5203
- Ürün Adı : Caliper Guides & Seals Repair Kit
- Ürün Ölçüsü/Ağırlığı : 1,550 gr

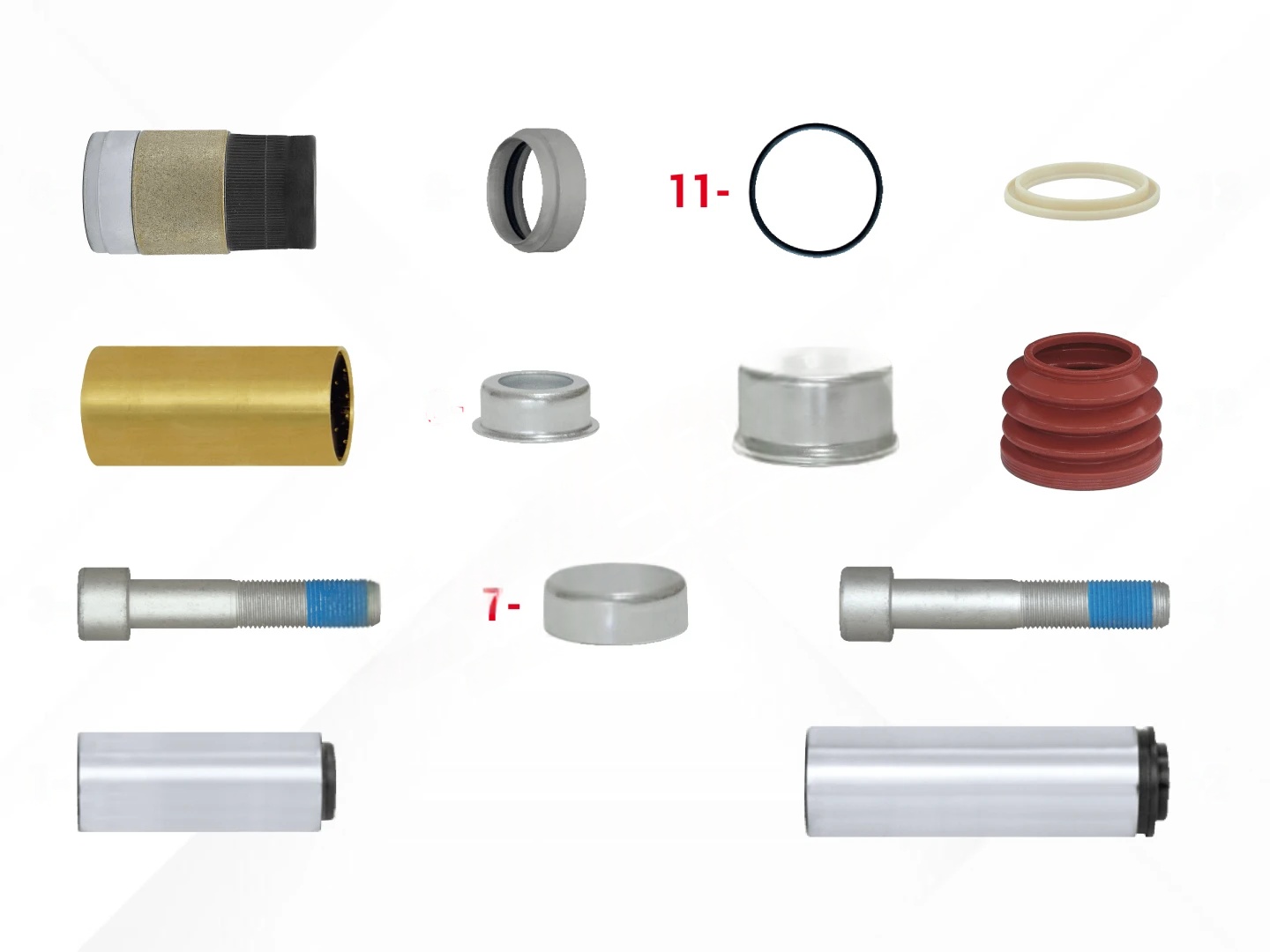

İçindekiler
| Sıra | Görsel | Kod | Adı | Boyut |
| 1 |
|
IR5501 | Guide Pin Ø32 X 80 mm | 0,300 gr |
| 2 |
|
IR5505 | Guide Pin Ø36 X 113,70 mm | 0,570 gr |
| 3 |
|
IR5513 | Bolt M16 X 1,5 X 80 mm | 0,155 gr |
| 4 |
|
IR5514 | Bolt M16 X 1,5 X 87 mm | 0,170 gr |
| 5 |
|
IR5521 | Bronze Bush Ø40 X Ø36 X 82 mm | 0,155 gr |
| 6 |
|
IR5522 | Metal-Rubber Bush Ø39 mm (Metal End) | 0,085 gr |
| 7 |
|
IR5543 | Steel Cap Ø40 x 14,5 mm | 0,020 gr |
| 8 |
|
IR5542 | Steel Cap Ø26 x 11,5 mm | 0,010 gr |
| 9 |
|
IR5617 | Metal Of Rubber Bush Ø35 mm | 0,020 gr |
| 10 |
|
IR5541 | Steel Cap Ø50 x 28 mm | 0,040 gr |
| 11 |
|
IR5553 | O-ring | 0,001 gr |
| 12 |
|
IR5531 | Inner Boot | 0,020 gr |
| 13 |
|
IR5551 | Inner Boot Ring | 0,005 gr |
Not: İlgili parçalardan bazı setlerde bir kaç adet bulunabilir.
| Üretici | OEM Numarası |
| KNR | K067417K50 |
| SCN | 2064260 - 2292232 - 2365038 - 2087143 - 2021750 - 1906776 - 1477676 |
| SF | 3 434 3820 00 |
| OTHER | CKSK.6 |
